4K Video Wall
HomeLCD Video Wall4K Video Wall>Details of new products of KAWDEN OPs4k LCD splicing screen

Details of new products of KAWDEN OPs4k LCD splicing screen

Time:2022-11-22Popularity:46

4K Video Wall
  • Details of new products of KAWDEN OPs4k LCD splicing screen
Product description

1. Advantages of Cardiff ops 4k LCD splicing screen I

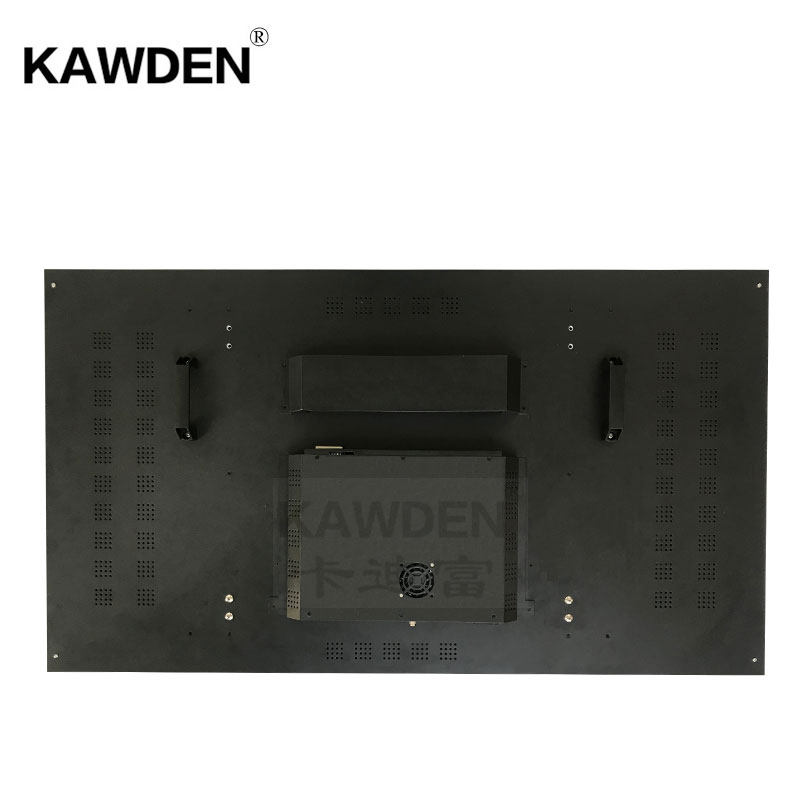

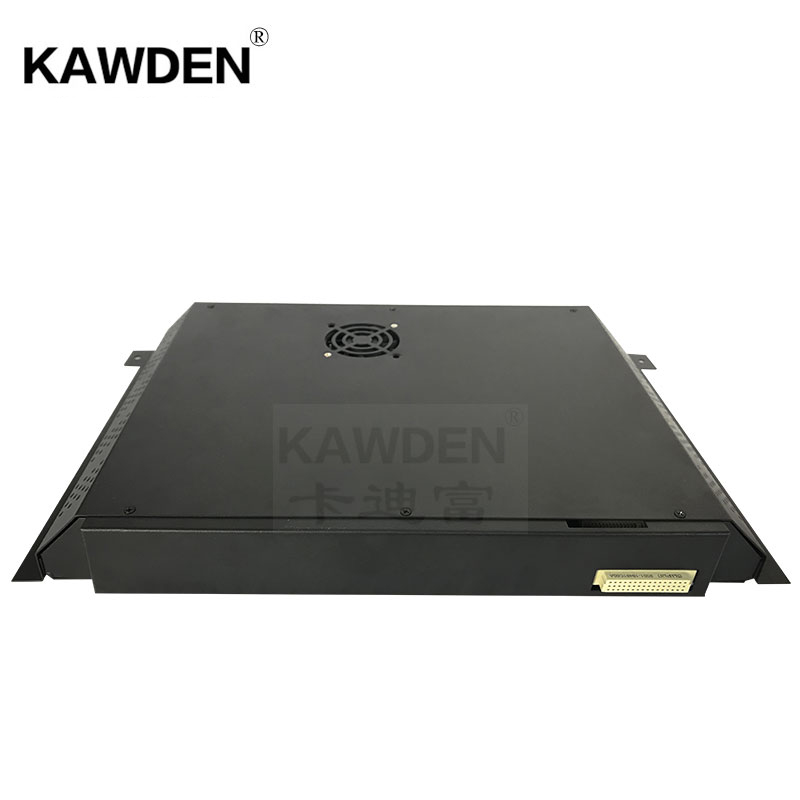

If there is a problem with the multi screen splicing screen, the LCD splicing screen customer does not need to remove the screen. Instead, unscrew two screws directly from the back of the screen to remove the OPS module. We can quickly express a new OPS module to the customer, and the customer can install it directly.


2. Advantages of Cardiff OPs4k LCD splicing screen II

The Kawden LCD splicing screen uses the 4K board card built-in synchronization technology to improve the picture definition, and at the same time, it can achieve complete synchronization of pictures, which solves the problem of pictures not synchronized when the refresh speed is fast for most of the industry!


3. Advantages of Kawden ops 4k LCD splicing screen III


In the future, the after-sales of Kawden LCD splicing screen will save more time and effort, and the customer will also save money and time.
Technical Parameters
panel 40寸 46寸 47寸 48寸 49寸 55寸   55寸
Butt joint 12mm 3.5mm 4.9mm 8mm 2.8mm 1.8mm 1.7mm
brightness
500cd/m2 700cd/m2 450cd/m2 500cd/m2 500cd/m2 500cd/m2 500cd/m2
Maximum resolution 1920*1080 1920*1080 1920*1080 1920*1080 1920*1080 3840*2160 3840*2160
Brightness contrast
16:09 16:09 16:09 16:09 16:09 16:09 16:09
response time 8ms 8ms 8ms 8ms 8ms 8ms 8ms
Display color
16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
contrast ratio
3000:01:00 3000:01:00 4000:01:00 4000:01:00 3000:01:00 4000:01:00 4000:01:00
Maximum power loss
≤180W ≤250W ≤300W ≤250W ≤300W ≤400W ≤400W
Standby power loss
<1W <1W <1W <1W <1W <1W <1W
Point spacing
0.46*0.46 0.63*0.63 0.54*0.54 0.54*0.54 0.63*0.63 0.63*0.63 0.63*0.63
Power Supply
AC100V~240V,50/60Hz
Light source life
60000h(minimum value)
Angle of view (up/down/left/right)
178°/178°/178°/178°
Field frequency
50Hz、60Hz、70Hz
Compatible HD TV Out 480P、576P、720P、1080P、3840×2160
Package installation size
1315.3mmx786.3mmx314.7mm
Installation method
Cabinet/wall mounted/floor mounted
parts

Wall bracket, power cord, remote controller, 232 to RJ45 serial port connector, installation screw (M8 * 16) software

manual, warranty card, certificate

Consulting Service
Users in the course of any problems encountered, can call the free consultation Tel: 0755-21042483 Advisory
Replacement Service
Replacement period of the product, if there is indeed due to factory quality problems caused by the reasons, the user can go to the dealer free of charge.
Warranty Service
Warranty period of the product, if a quality problem, can go to the local after-sales service center to enjoy the warranty service.
Maintenance Service
Maintenance period of the product, if a quality problem, the user can go to the local after-sales service center or commissioned by the dealer for repair services.
