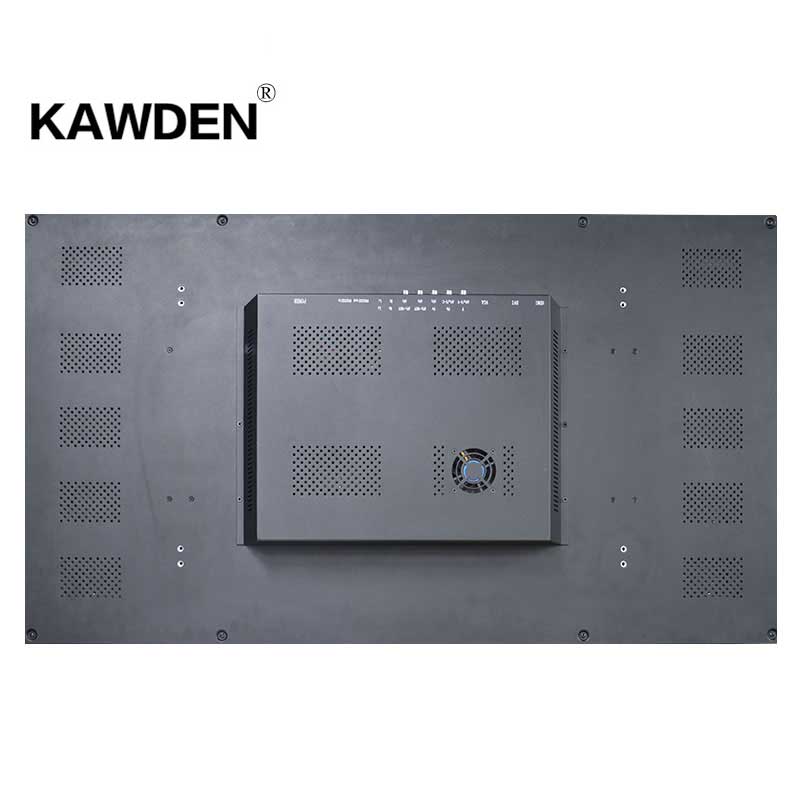

kawden All-in-one—distribution cloud synchronization LCD video wall

Time:2020-12-09Popularity:2788

Full loop smart built-in matrix LCD splicing screen
  • kawden All-in-one—distribution cloud synchronization LCD video wall
Product description


All-in-one cloud synchronization LCD video wall connect to screen through LVDS port, suitable to Samsung LG panel perfectly, support back-light and parameter adjustment.

All IP camera signal and local DVI/HDMI/VGA signal can transfer to screen directly,  can display control and manage images easily without the external equipment like matrixsignal linesor distributor etc, this is the large different from the traditional video wall connect mode, images is no delay between the transmission and display, really reach cloud synchronization.



图标:




Features:




1.Cloud synchronization technology solve the problem of out-sync in cloud splicing and network decoding

2.Progressive edge brightness technology

 Progressive edge brightness tech solve the problem of black edge

3.Full back-up system

 Centralizationdistributioncentralization-distrobition back-up, can integrate traditional and distribution back-up system.

4.Powerful decoding function

Support 1080P×2 60Hz 1080P×4 30Hz  720P×9 DI×16’s decoding function, achieve signal of RTSP ONVIF

5.Internal mixed matrix function

Every unit can accept signal of IPHDMIDVIVGAYpbprCVBSUSBflexibly display image on every unit of the screen.

6.Unit support driving 1920×1080

7.Input      LVDS×1  stereo audio signal input


Technical Parameters
Panel Size 40inch 46inch 47inch 48inch 49inch 55inch
Pezel 12mm 3.9mm 4.9mm 8mm 2.8mm 1.8mm
Brightness 500cd/m2 700cd/m2 450cd/m2 500cd/m2 500cd/m2 500cd/m2
Max resolution radio   1920*1080 1920*1080 1920*1080 1920*1080 1920*1080 4096*2160
Aspect Ratio 16:09 16:09 16:09 16:09 16:09 16:09
Response Time 8ms 8ms 8ms 8ms 8ms 8ms
Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Contrast ratio 3000:01:00 3000:01:00 4000:01:00 4000:01:00 3000:01:00 4000:01:00
Max power consumption ≤180W ≤250W ≤300W ≤250W ≤300W ≤400W
Standby power consumption <1W <1W <1W <1W <1W <1W
Pixel Pitch 0.46*0.46 0.63*0.63 0.54*0.54 0.54*0.54 0.63*0.63 0.63*0.63
Voltage input AC100V~240V,50/60Hz
Bachlight life ≥60000 hours
Visual Angle (H/V) 178°/178°/178°/178°
Field frequency 50Hz、60Hz、70Hz
HD TV output 480P、576P、720P、1080P、4K
Packing dimension 、1315.3mmx786.3mmx314.7mm
Installation mode  Wall-mounted/built-in cabinet/floor-standing
Accessories list Power cable/main signal line/232 to RJ45 serial port/install screws(M8*16)/software manual/warranty card/certification card
