BOE LCD Video Wall
HomeLCD Video WallBOE LCD Video Wall>49 inch 1.7mm LCD splicing screen BOE LCD splicing screen customized batch deliv

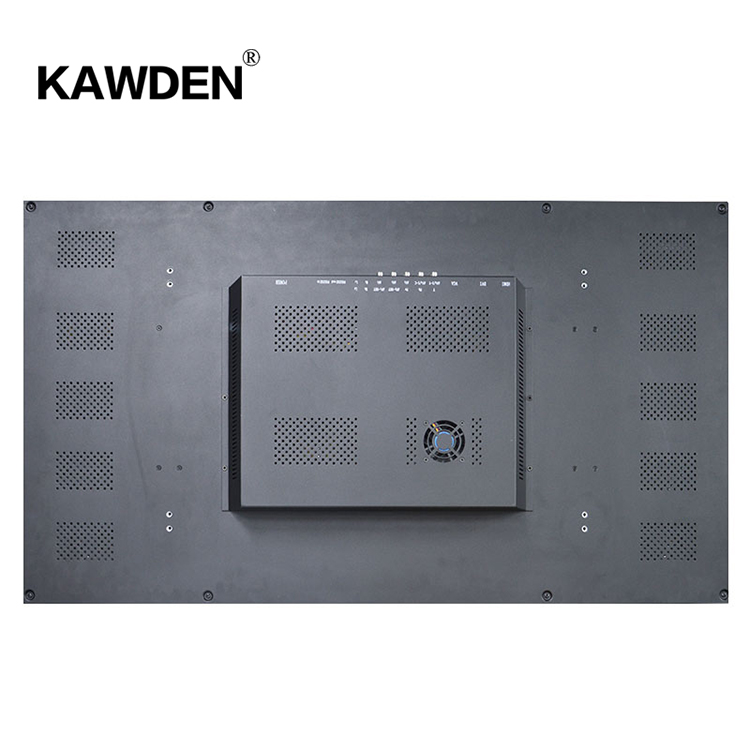

49 inch 1.7mm LCD splicing screen BOE LCD splicing screen customized batch deliv

Time:2022-11-24Popularity:451

BOE LCD splicing screen - KAWDEN official website
  • 49 inch 1.7mm LCD splicing screen BOE LCD splicing screen customized batch deliv
Product description

1、 Introduction to 49 inch BOE LCD splicing screen


The 49 inch LCD splicing screen adopts BOE industrial LCD panel, and combines ultra narrow edge seamless splicing technology, signal switching technology, lossless remote transmission technology, and digital image splicing processing technology to form a set of LCD splicing display system with diversified functions, intelligent control, and advanced operation, so as to show customers high-quality crystal splicing images with high brightness, high definition and no interference. Professional anti burning screen and heat dissipation technology, mean time between failures ≥ 60000 h. The perfect seamless splicing effect can minimize the visual blind spot and sense of visual separation of the viewer, and present you with an integrated grand vision and ultra clear and shocking dynamic visual experience.



2. 49 inch BOE LCD splicing screen function


The 49 inch ultra narrow edge LCD splicing screen can be used either as a display alone or as a large screen splicing wall. According to different use needs, it can realize the functions of variable large screen: single screen split display, single screen separate display, arbitrary combination display, full screen LCD splicing, double splicing LCD splicing, vertical screen display, image frame can be compensated or covered, support roaming, zooming stretching, cross screen display of digital signals, setting and operation of various display plans, and real-time processing of full HD signals.



3. 49 inch BOE splicing screen application


The 49 inch LCD splicing screen is widely used in: video monitoring, traffic control, security monitoring, national defense, stage entertainment, television studio, stock securities, large exhibitions, shopping malls, banks, office halls, corporate welcome screens, specialty stores, dispatching command, etc.
Technical Parameters
Specification and model
KD-S49017CL
LCD splicing screen
49"
Size 1077.0mm*608mm
Screen resolution
1920×1080P
Activate display area
1088mm(W)*618mm(H)
Color saturation
97%
brightness
500cd/㎡
contrast ratio
4000:01:00
refresh frequency
60HZ/120HZ
Display Color
10bit – 1billion color
Viewing angle
178°
Total joint at both sides
≤1.7mm
Input interface
HDMI, VGA,DVI,AV
Signal format
NTSC、PAL、480P、576P、720P、1080I、1080P
control interface
Infrared remote controller and RS232
image processing techniques

The first company to create "dynamic super resolution technology", which can make low pixel images appear

clearly in the full HD display screen; De interlacing processing technology to eliminate flicker; De interlacing

algorithm to eliminate "sawtooth";Dynamic interpolation compensation, 3D dynamic digital noise reduction,

3D comb filtering, 10 bit digital brightness and color enhancement,

automatic skin color correction,3D motion compensation, nonlinear scaling and other international leading

technologies Processing technology; Image frame can be compensated or covered, and full HD signal can be

processed in real time.

Overview of display functions

Manual/timing/cruise/alarm plan setting, kaleidoscope demonstration, intelligent temperature control and

alarm, automatic detection of communication failure and other functions, multi signal split screen display,

full screen display, arbitrary combination display

working temperature
0-40 ℃
Operating humidity
15-75%
Power Supply
AC220V
Average power consumption
250W
Weight
Single piece 35kg, double piece: 67kg wooden frame about 20kg
Installation method
Wall mounted, embedded, floor mounted cabinet, hoisting, TV cabinet
Recommended place of use

Security monitoring, command center, entertainment industry, enterprise exhibition, commercial advertising

and media, exhibition center, factories and mines, power, water conservancy, education, government

agencies and units, military, etc

Consulting Service
Users in the course of any problems encountered, can call the free consultation Tel: 0755-21042483 Advisory
Replacement Service
Replacement period of the product, if there is indeed due to factory quality problems caused by the reasons, the user can go to the dealer free of charge.
Warranty Service
Warranty period of the product, if a quality problem, can go to the local after-sales service center to enjoy the warranty service.
Maintenance Service
Maintenance period of the product, if a quality problem, the user can go to the local after-sales service center or commissioned by the dealer for repair services.
