LG LCD Video Wall
HomeLCD Video WallLG LCD Video Wall>49寸3.5mm ultra-narrow bezel high definition LCD video wall screen

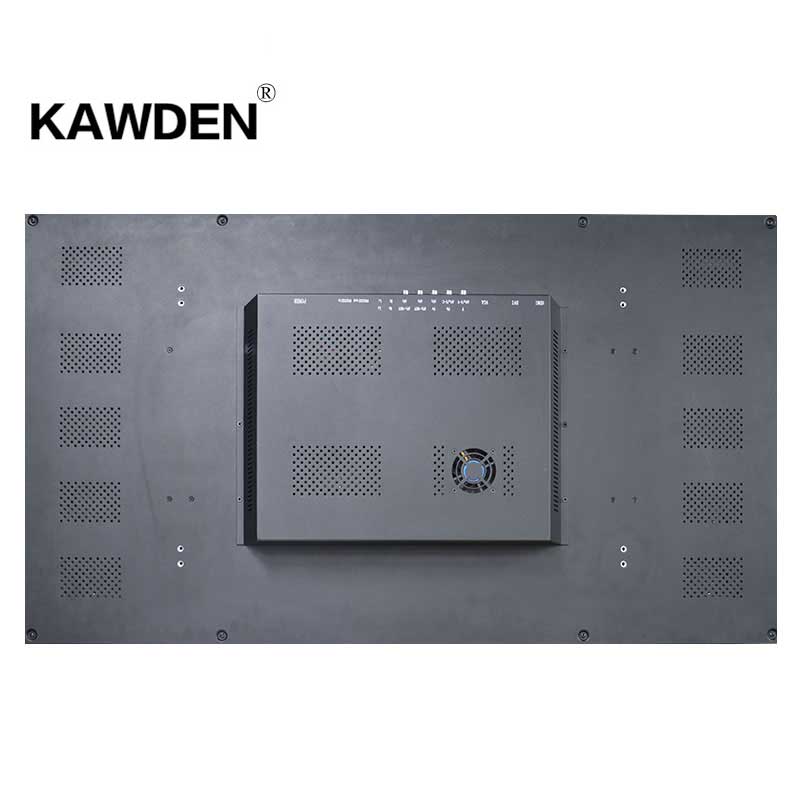

49寸3.5mm ultra-narrow bezel high definition LCD video wall screen

Time:2016-12-09Popularity:2523

LG LCD splicing screen | | lg splicing screen KAWDEN
  • 49寸3.5mm ultra-narrow bezel high definition LCD video wall screen
Product description



1Back-light adopt LED source display technology, the contrast ratio up to 4000:1, 10000K color temperature, special designed for video display, high definition, high brightness, can display perfectly even if under sunshine

2.Use industrial-grade professional DID LCD splicing screen, designed for industrial monitoring and multimedia information display to achieve signal splicing display and achieve signal split display, windowing, superimposing, cross screen, zooming and other special displays.

3:All signals can connected to 256 screen wall through samplex image processor and matrix

4:Ultra-narrow border design, bilateral seam is equal to 3.5mm, border compensation function, images are real-time display and loss-less

5: High resolution ratio, unit supports driving 1920X1080 LCD screen

6.Various of splicing mode, Horizontal placement or vertical placement.

7.Automatic check temperature and cooled by fan or healed.

8. Support 7*24 hours, 365 days of continuous power-on, high reliability and high stability, back-light life up to 60,000 hours.

9.Integrate multi-channal video signal type: HDMI, DVI, VGA, CVBS (composite video),support PC image signal and can connect to IT

10.Support the transmission and display in the network, optional internal high definition media player

11. Super wide angle extension technology, the visual angle can reach 178°





Features:

◆ Menu Language Chinese,English, Multi-lan

◆ Embedded 3D video brightness circuit section, 3D progress scan, 3D digital signal noise reduction, change normal interlaced scan signal PAL/NTSC into progress scan.

◆ Start time less than 8 second, it can guarantee no training

◆ Super silence cooled fan design for longer life of the whole machine

◆ The processor adopts motion detection and compensation calculation, interpolation operation and clutter signal suppression, etc, top process technology.

◆ Adopt ultra-thin tamper-proof out case, radiation-less

◆ Support 7*24 hours, 365 days of continuous power-on, high reliability and high stability, back-light life up to 60,000 hours.




Technical Parameters

Model No KD—PJLE4900
Panel Size 49"
Dimension 1084.0mm*615.0mm
Max resolution radio   1920×1080P
Display size 1064.48mm(W)*602.67mm(H)
Colour saturation 97%
Brightness 450 cd/㎡
Contrast ratio 4000:01:00
Refresh frequency 120Hz
Color 16.7M
Visual Angle (H/V) 178°
Pezel ≤3.5mm
Input VGA,DVI,HDMI,AV
Video format NTSC、PAL、480P、576P、720P、1080I、1080P
Control interface   Romote control  RS232
Working Temperature 0℃-50℃
Working Humidity 15-75%
Voltage input AC100V~240V,50/60Hz
Max power consumption 200W
Weight single 35kg,  double:67kg
Installation mode
Wall-mounted/built-in cabinet/
Wall-mounted/built-in cabinet/
floor-standing
