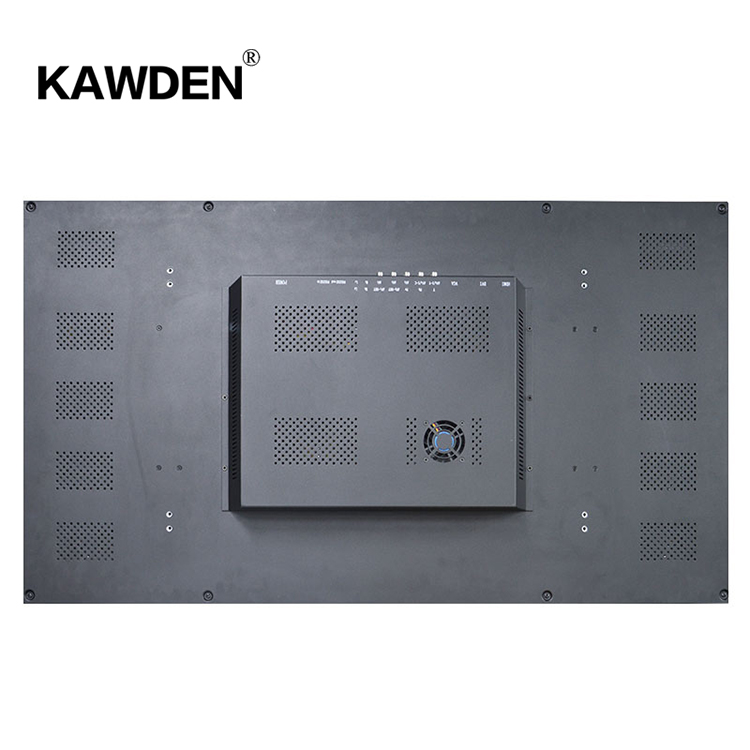

Kawden ultra narrow edge 55 inch lg large screen LCD splicing display wall 1.8mm

Time:2022-11-23Popularity:62

LG LCD splicing screen | | lg splicing screen KAWDEN
  • Kawden ultra narrow edge 55 inch lg large screen LCD splicing display wall 1.8mm
Product description

1. Features of super narrow 55 inch large screen splicing wall


The 55 inch ultra narrow edge LCD splicing wall adopts Korean lg industrial grade DID LCD screen and the most advanced intensive LED light source backlight system. The backlight has good color reproduction, vivid images, ultra dense distribution of dots, and even backlight brightness. The use of high-volume electronic components and unique intelligent color correction technology make the color more beautiful and natural. Advanced UV2A liquid crystal layout technology is adopted: bright field, energy saving, ultra-high light efficiency, and no light leakage in dark field The ultra-high contrast 6ms response speed makes the image smoother. Energy saving, environmental protection, radiation free, long service life, uniform brightness for long-term use, glass free backlight, safe transportation, solid panel shell material, not easy to damage. The LCD display unit adopts the most advanced backlight technology, which greatly improves the overall display effect of the splicing unit and has outstanding technical characteristics.



2. Super narrow edge 55 inch lg splicing wall function


The 55 inch ultra narrow edge LCD splicing screen can be used as a display alone or spliced into a large screen. According to different use needs, it can realize the functions of variable large screen: single screen split display, single screen separate display, arbitrary combination display, full screen LCD splicing, double splicing LCD splicing, vertical screen display, image frame can be compensated or covered, support roaming, zooming stretching, cross screen display of digital signals, setting and operation of various display plans, and real-time processing of full HD signals.


3. Application of super narrow edge 55 inch lg splicing wall
55 inch LCD splicing wall, with grand picture, bright color, high definition, strong visual impact, has a good effect of display, demonstration, advertising and publicity; Easy to install without space limitation. The 55 inch LCD splicing wall is widely used in: video monitoring, traffic control, security monitoring, national defense, stage entertainment, television studio, stock securities, large exhibitions, shopping malls, banks, office halls, corporate welcome screens, specialty stores, dispatching command, etc.
Technical Parameters
Specification and model KD-lg5518dx
Panel size
55''
Butt joint
less than 1.8mm
Display Area
1209.6(H)×680.4(V)
display mode
16:9
Liquid crystal type
LED
Maximum resolution
1920x1080
Display color
16.7M
Point spacing(mm) 0.0.63(H)*0.63(V)
Brightness(nits) 500cd/㎡
contrast ratio
4000:1
Angle of view (up/down/left/right)
178°/178°/178°/178°
response time
8ms
Field frequency
50HZ、60HZ、70HZ、
Composite video input
5-way BNC(BNC*5)input
Composite video output
2-way BNC (BNC * 2) output, connected to video equipment, etc
Serial port control/RS232 input
1-way RS232-RJ45(568B)input
Serial port control/RS232 output
1-way RS232-RJ45(568B)output
VGA input 1-way D-SUB VGA input
HDMI 1-way HDMI input
DVI 1-way DVI input
Color system
PAL/NTSC/automatic recognition
Compatible HD TV input
480P,576P,720P,1080I,1080P
3D comb filtering
yes
noise reduction
yes
Menu language (optional)
中文/English
Power Supply
AC100V~240V,50/60Hz
Maximum power loss
≤300W
Standby power loss
<1W
Cooling system
Ultra quiet dual fan cooling, with temperature control function
Casing material
Strong metal casing
Body size (length × High)
1213.4(W)×684.2(H)×136(D)mm
Package size
1305.0mm*715.0*270.0mm
Installation method
Cabinet/wall mounted/suspended
Packaging accessories

Wall bracket, power cord, remote controller, 232 to RJ45 serial port connector, mounting screw (M8 * 16),

software manual, warranty card, certificate of conformity

Consulting Service
Users in the course of any problems encountered, can call the free consultation Tel: 0755-21042483 Advisory
Replacement Service
Replacement period of the product, if there is indeed due to factory quality problems caused by the reasons, the user can go to the dealer free of charge.
Warranty Service
Warranty period of the product, if a quality problem, can go to the local after-sales service center to enjoy the warranty service.
Maintenance Service
Maintenance period of the product, if a quality problem, the user can go to the local after-sales service center or commissioned by the dealer for repair services.
