outdoor stand-floor horizontal screen advertising machine

47inch KAWDEN horitontal screen air-cooled kiosk

Time:2017-03-20Popularity:366

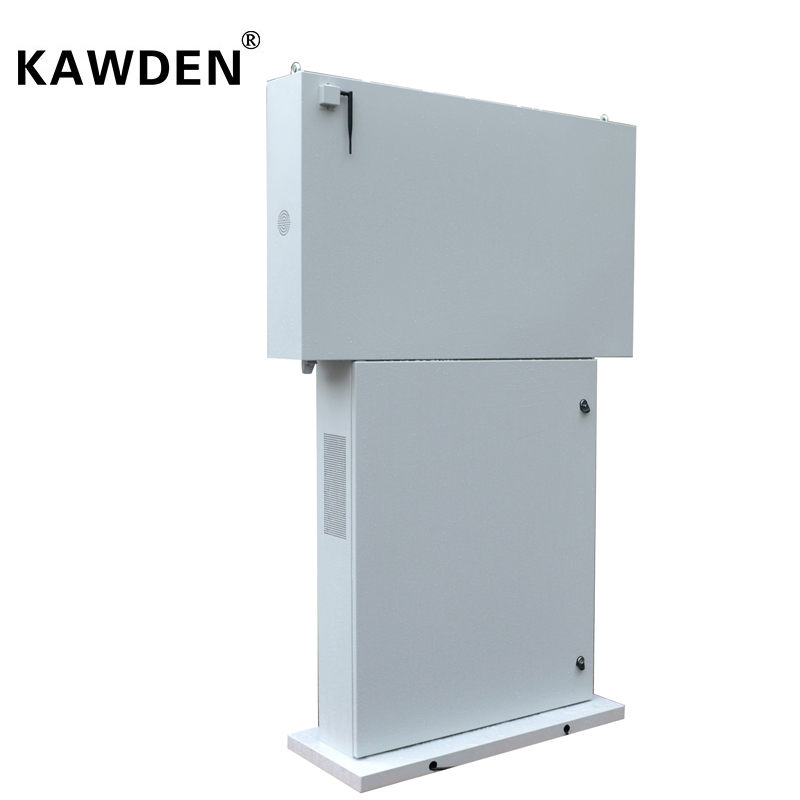

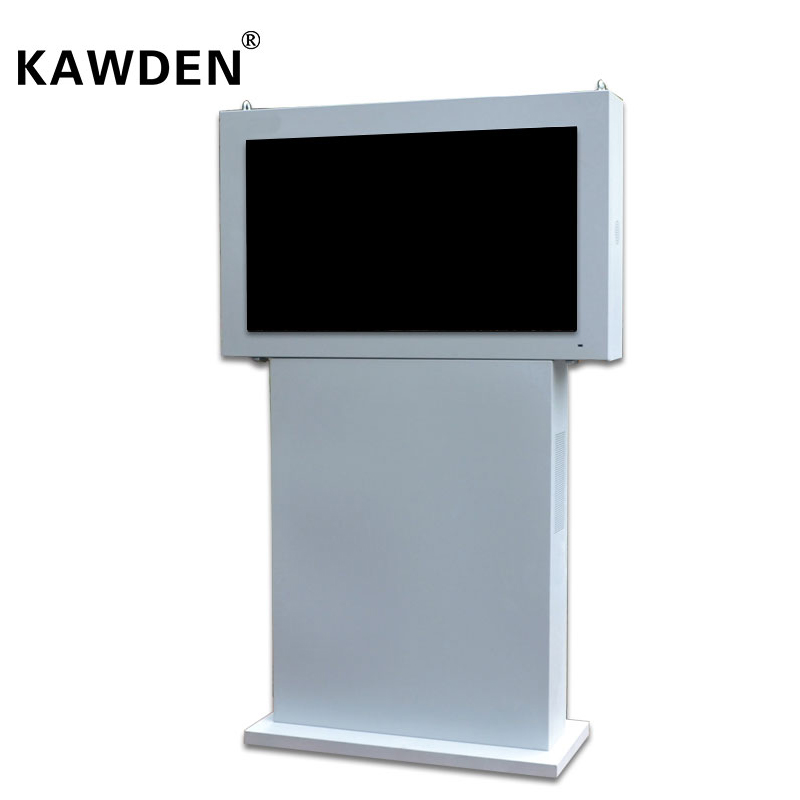

  • 47inch KAWDEN horitontal screen air-cooled kiosk
Product description

Technology introduction


1.Outdoor water-proof  dust-proof



Ø The level of protection reach IP65(air condition type), water-proof, dust-proof design,  stand-floor, pre-embeded or customized installation mode( air-cooled type IP55)

Ø Adopt high transmition anti-glare AR laminated glasses, improve the visuality, AR anti-galre technology can get more vivid images under sunshine.

Ø Galvanized steel plain sheet metal shell plus the rust-proof power,  rust proof age is beyond 7 years


2. High brightness, vivid display under sunshine



Ø  High brightness LCD screen, brightness up to 1500-3000cd/m2

Ø  LED backlight, lamp life up to 100000 hours

Ø  High dynamic contrast ratio, get more clear images

Ø  Intelligent temperature cotrol air-cooled design, 7*24 hours work time without any brightness decay.

3.Features

Ø  Stand-floor installation, unique double door desigan, easy maintenance

Ø  Outdoor water-proof , dust-proof design

Ø High brightness LCD screen, anti-glare design, display the vivid image even if under sunshine.

Ø  Professional temperature control tech, no Screen melanism under sunshine.

Ø  Adopt international famous fan, more stability and green silence

Technical Parameters

stand-floor horizontal screen
model TY-FC47WL
high brightness screen screen demension 47inch
resolution ratio 1920*1080
brightness 2000cd/㎡
display area 1018*572mm
vision angle 178°水平/178°垂直
brightness control automatic sensitization
整机参数 outer demension 1850*1200mm
power consumption AC 208-240V/50Hz
cooling system intelligent air-cooled system
power consumption ≤285W
work temperature -30℃-45℃
work humidity 5%-90%RH
water-proof  IP55
weight 95Kg
Shell anti-corrosion tech Galvanized steel plain sheet metal shell plus the rust-proof power,  rust proof age is beyond 7 years
optional configuration dislpay system PC board  android board long distance informaton release system
network transmission standalone WIFI 3G 4G
touch screen

capacitance touch  infrared touch
