SamSung LCD Video Wall
HomeLCD Video WallSamSung LCD Video Wall>55 inch LCD splicing screen indoor and outdoor splicing screen high-definition s

55 inch LCD splicing screen indoor and outdoor splicing screen high-definition s

Time:2022-09-24Popularity:537

Supply Samsung LCD splicing screen manufacturer KAWDEN
  • 55 inch LCD splicing screen indoor and outdoor splicing screen high-definition s
Product description

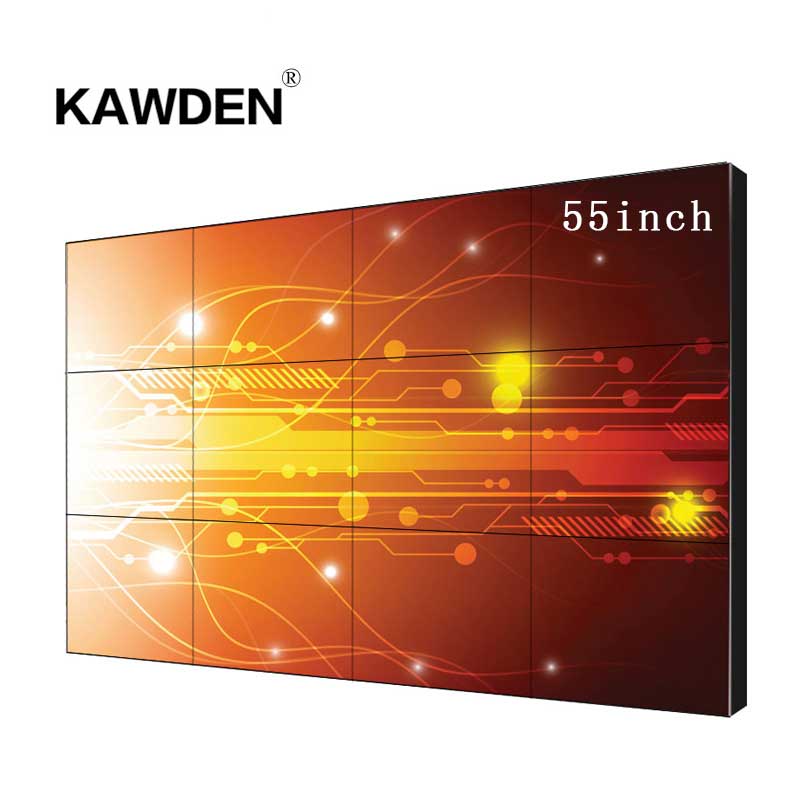

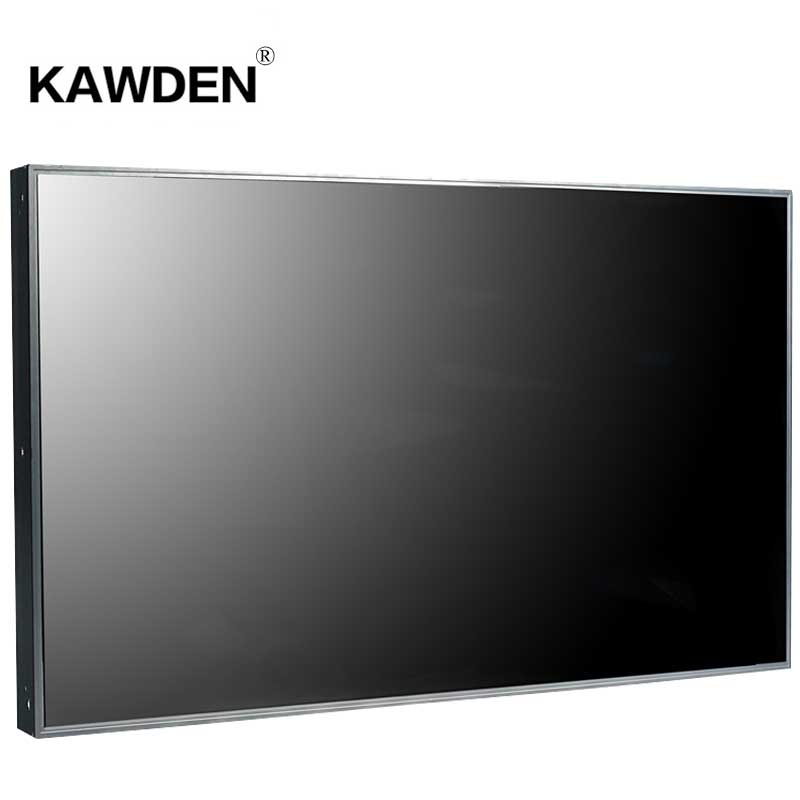

KAWDEN 55 inch LCD splicing screen indoor and outdoor splicing screen high-definition security monitoring display exhibition conference large screen



1.Back-light adopt LED source display technology, the contrast ratio up to 4000:1, 10000K color temperature, special designed for video display, high definition, high brightness, can display perfectly even if under sunshine

2.Use industrial-grade professional DID LCD splicing screen, designed for industrial monitoring and multimedia information display to achieve signal splicing display and achieve signal split display, windowing, superimposing, cross screen, zooming and other special displays.

3:All signals can connected to 256 screen wall through samplex image processor and matrix

4:Ultra-narrow border design, bilateral seam is equal to 7mm, border compensation function, images are real-time display and loss-less

5: High resolution ratio, unit supports driving 1920X1080 LCD screen

6.Various of splicing mode, Horizontal placement or vertical placement.

7.Automatic check temperature and cooled by fan or healed.

8. Support 7*24 hours, 365 days of continuous power-on, high reliability and high stability, back-light life up to 60,000 hours.

9.Integrate multi-channal video signal type: HDMI, DVI, VGA, CVBS (composite video),support PC image signal and can connect to IT

10.Support the transmission and display in the network, optional internal high definition media player

11. Super wide angle extension technology, the visual angle can reach 178°





Features:

◆ Menu Language Chinese,English, Multi-lan

◆ Embedded 3D video brightness circuit section, 3D progress scan, 3D digital signal noise reduction, change normal interlaced scan signal PAL/NTSC into progress scan.

◆ Start time less than 8 second, it can guarantee no training

◆ Super silence cooled fan design for longer life of the whole machine

◆ The processor adopts motion detection and compensation calculation, interpolation operation and clutter signal suppression, etc, top process technology.

◆ Adopt ultra-thin tamper-proof out case, radiation-less

◆ Support 7*24 hours, 365 days of continuous power-on, high reliability and high stability, back-light life up to 60,000 hours.

Technical Parameters
Model No
KD-S55035
Panel size
55"
Demension
1208.0mm*680.5mm
Max resolution radio
1920×1080P
Display size
1213.4(W)×684.2(H)×136(D)mm
Colour saturation
97%
Brightness
500 cd/㎡
Contrast ratio
4000:01:00
Refresh frequency
60/120Hz
Colour
8Bit,16.7M
Visual Angle (H/V
178°
Bilateral seam
≤8mm
Input
VGA,DVI,HDMI,AV
Signal model
NTSC、PAL、480P、576P、720P、1080I、1080P
Control interface
remote control   RS232
Working temperature
0℃~50℃
working humidity
15-75%
AC voltage power supply
AC220V
Power consumption
200W
weight
single35kg, double:67kg
Installation mode
wall-mounted. floor-stand、cabinet

Consulting Service
Users in the course of any problems encountered, can call the free consultation Tel: 0755-21042483 Advisory
Replacement Service
Replacement period of the product, if there is indeed due to factory quality problems caused by the reasons, the user can go to the dealer free of charge.
Warranty Service
Warranty period of the product, if a quality problem, can go to the local after-sales service center to enjoy the warranty service.
Maintenance Service
Maintenance period of the product, if a quality problem, the user can go to the local after-sales service center or commissioned by the dealer for repair services.
