Shenzhen 55 inch domestic panel 3.5mm affordable display large LCD splicing scre

Time:2022-11-24Popularity:293

BOE LCD splicing screen - KAWDEN official website

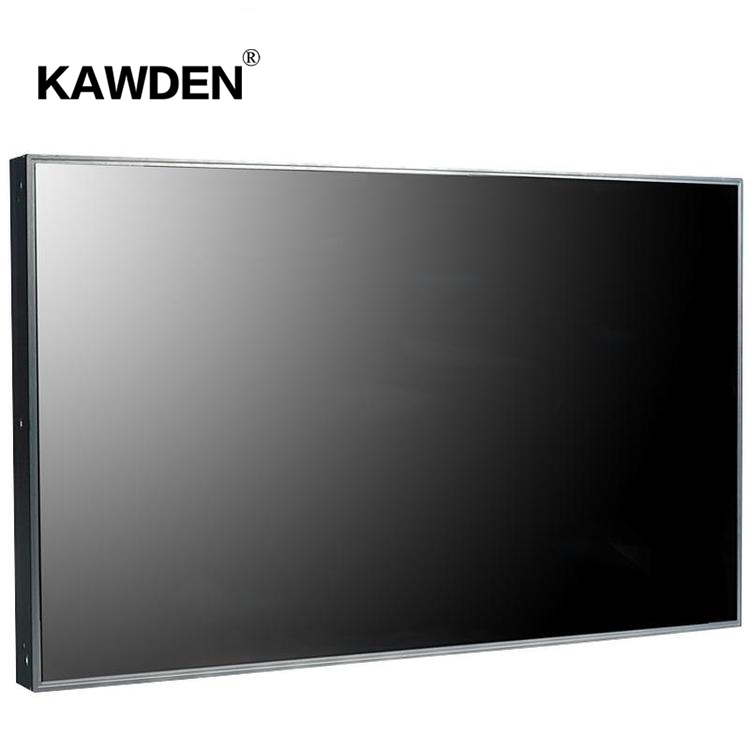

  • Shenzhen 55 inch domestic panel 3.5mm affordable display large LCD splicing scre
Product description

1、 Features of 55 inch domestic LCD panel splicing screen


KAWDEN 55 inch domestic LCD splicing screen, with 3.5mm splicing seam, adopts domestic panel, which is economical. In addition, the display has built-in self splicing function, which can realize the splicing display of multiple LCD screens through simple settings. one thousand nine hundred and twenty × 1080 full HD display resolution can provide the dispatching center with very clear and delicate display images, and display HD signals without compression. With 178 degree wide viewing angle technology, you can see the superior display effect from any side. LED backlight is adopted, with wide color gamut, good color performance, low energy consumption, and safer low-voltage.



2、 55 inch domestic LCD panel splicing screen function


The LCD splicing screen is a complete LCD splicing display unit, which can be used either as a display alone or as a large LCD splicing screen. According to different use needs, realize the function of variable large screen: single screen split display, single screen separate display, arbitrary combination display, full screen LCD splicing, vertical screen display, and image frame can be compensated or covered.



3、 Application of 55 inch LCD splicing screen domestic panel


Application sites: hotels, shopping malls, transportation, water conservancy, electricity, medical treatment, energy, television media, enterprises and institutions, etc.

Technical Parameters
Specification and model
KD-gc5580dx
LCD panel and size
55''
Butt joint
less than3.5mm
Display area(mm) 1209.6(H)×680.4(V)
display mode
16:9
Liquid crystal type
LED
Maximum resolution
1920*1080
Display color
16.7M
Point spacing(mm) 0.63(H)*0.63(V)
Brightness
500cd/㎡
contrast ratio
4000:1
Angle of view (up/down/left/right)
178°/178°/178°/178°
response time
8ms
Field frequency
60HZ
Composite video input
5-way BNC (BNC * 5) input
Composite video output
2-way BNC (BNC * 2) output, connected to video equipment, etc
Serial port control/RS232 input One RS232-RJ45 (568B) input
Serial port control/RS232 output One RS232-RJ45 (568B) output
VGA input 1-channel D-SUB VGA input
HDMI 1 channel HDMI input
DVI 1 channel DVI input
Color system
1 channel DVI input
Compatible HD TV input
480P,576P,720P,1080I,1080P
3D comb filtering
yes
noise reduction
yes
Menu language (optional)
中文/English
Power Supply
AC100V~240V,50/60Hz
Maximum power loss
≤300W
Standby power loss
<1W

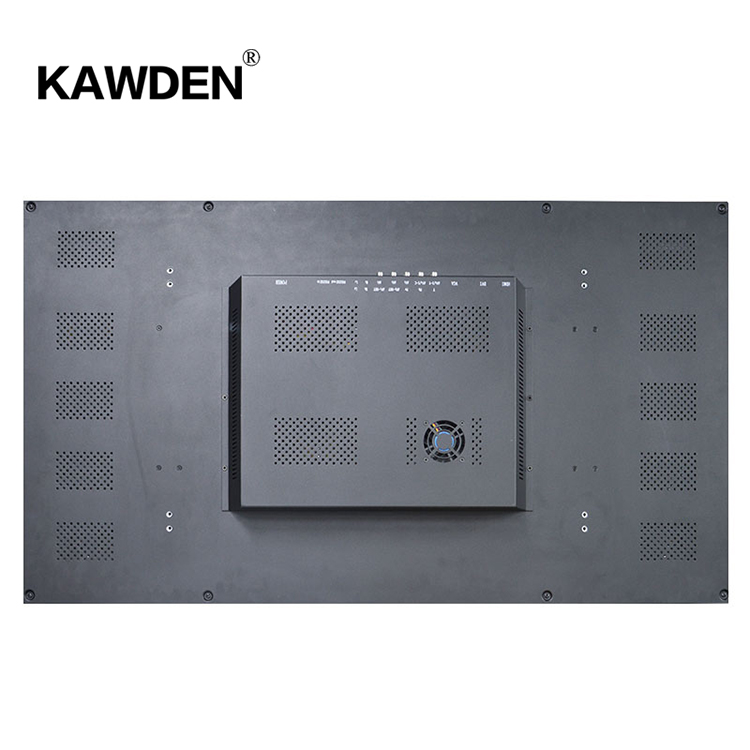

Cooling system
Ultra quiet dual fan cooling, with temperature control function
Casing material
Strong metal casing
Body size (length × high × Thick)
1213.4(W)×684.2(H)×136(D)mm
Installation method
Wall mounted/cabinet/floor/front maintenance support
parts

Wall bracket, power cord, remote controller, 232 to RJ45 serial port connector, mounting

screw (M8 * 16), software manual, warranty card, certificate of conformity
