BOE LCD Video Wall
HomeLCD Video WallBOE LCD Video Wall>55 inch 3.5mm ultra narrow edge highlight high-definition LCD screen splicing un

55 inch 3.5mm ultra narrow edge highlight high-definition LCD screen splicing un

Time:2022-11-24Popularity:904

BOE LCD splicing screen - KAWDEN official website
  • 55 inch 3.5mm ultra narrow edge highlight high-definition LCD screen splicing un

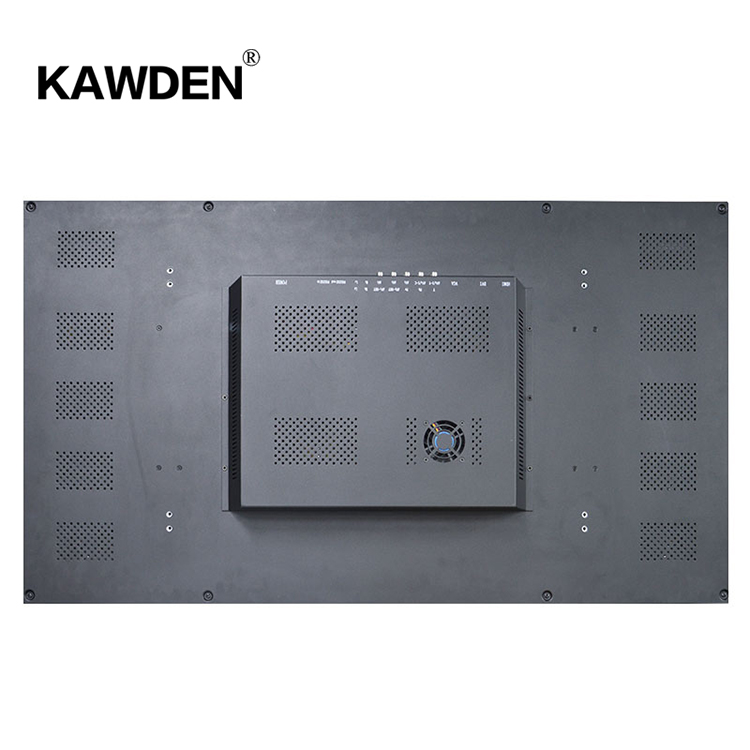

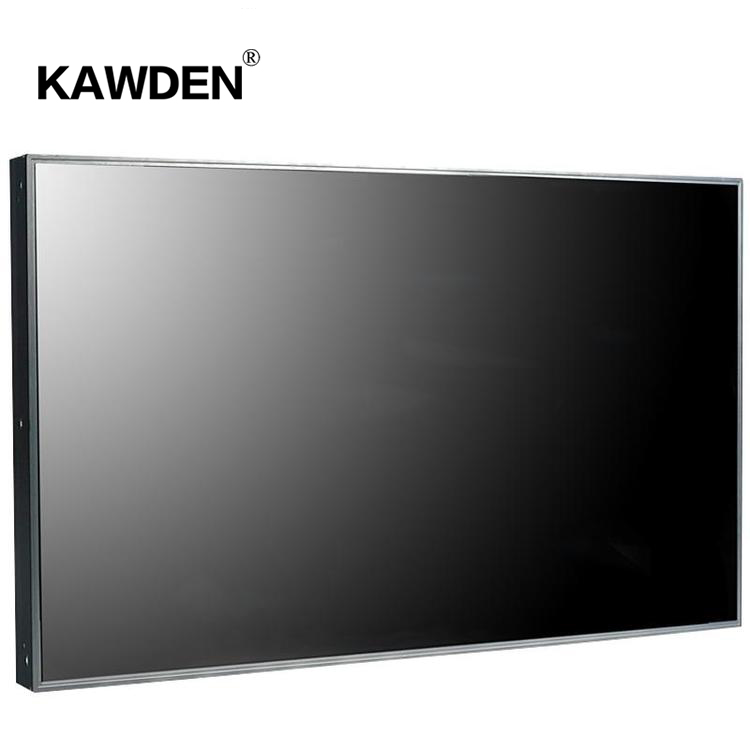

Product description

1、 Features of 55 inch BOE LCD splicing screen


Kawden 55 inch BOE panel LCD splicing screen has 3.5mm splicing seam, and the display has built-in self splicing function. Through simple settings, multiple LCD screens can be spliced. one thousand nine hundred and twenty × 1080 full HD display resolution can provide the management center with very clear and delicate display images, and display HD signals without compression. With 178 degree wide viewing angle technology, you can see the superior display effect from any side. LED backlight is adopted, with wide color gamut, good color performance, low energy consumption, and safer low-voltage. Moreover, the LCD splicing screen has a long life (≥ 60000 h) and low maintenance cost.



2、 55 inch BOE LCD splicing screen function


The LCD splicing screen is a complete LCD splicing display unit, which can be used either as a display alone or as a large LCD splicing screen. According to different use needs, realize the function of variable large screen: single screen split display, single screen separate display, arbitrary combination display, full screen LCD splicing, vertical screen display, and image frame can be compensated or covered.



3、 55 inch BOE LCD splicing TV wall application


Application sites: security, hotels, shopping malls, finance, transportation, water conservancy, government, electricity, medical, energy, TV media, enterprises and institutions, etc

Technical Parameters
Specification and model
KD-S55035BL
LCD panel and size
55''
Butt joint
less than3.5mm
Display area(mm) 1213.6(H)×685(V)
display mode
16:9
Liquid crystal type
LED
Maximum resolution
1920*1080
Display color
16.7M
Point spacing(mm) 0.63(H)*0.63(V)
Brightness
500cd/㎡
contrast ratio
4000:1
Angle of view (up/down/left/right)
178°/178°/178°/178°
response time
8ms
Field frequency
60HZ
Composite video input
5-way BNC (BNC * 5) input
Composite video output
2-way BNC (BNC * 2) output, connected to video equipment, etc
Serial port control/RS232 input One RS232-RJ45 (568B) input
Serial port control/RS232 output One RS232-RJ45 (568B) output
VGA input 1-channel D-SUB VGA input
HDMI 1 channel HDMI input
DVI 1 channel DVI input
Color system
1 channel DVI input
Compatible HD TV input
480P,576P,720P,1080I,1080P
3D comb filtering
yes
noise reduction
yes
Menu language (optional)
中文/English
Power Supply
AC100V~240V,50/60Hz
Maximum power loss
≤300W
Standby power loss
<1W
Cooling system
Ultra quiet dual fan cooling, with temperature control function
Casing material
Strong metal casing
Body size (length × high × Thick)
1213.4(W)×684.2(H)×136(D)mm
Installation method
Wall mounted/cabinet/floor/front maintenance support
parts

Wall bracket, power cord, remote controller, 232 to RJ45 serial port connector, mounting

screw (M8 * 16), software manual, warranty card, certificate of conformity

Consulting Service
Users in the course of any problems encountered, can call the free consultation Tel: 0755-21042483 Advisory
Replacement Service
Replacement period of the product, if there is indeed due to factory quality problems caused by the reasons, the user can go to the dealer free of charge.
Warranty Service
Warranty period of the product, if a quality problem, can go to the local after-sales service center to enjoy the warranty service.
Maintenance Service
Maintenance period of the product, if a quality problem, the user can go to the local after-sales service center or commissioned by the dealer for repair services.
