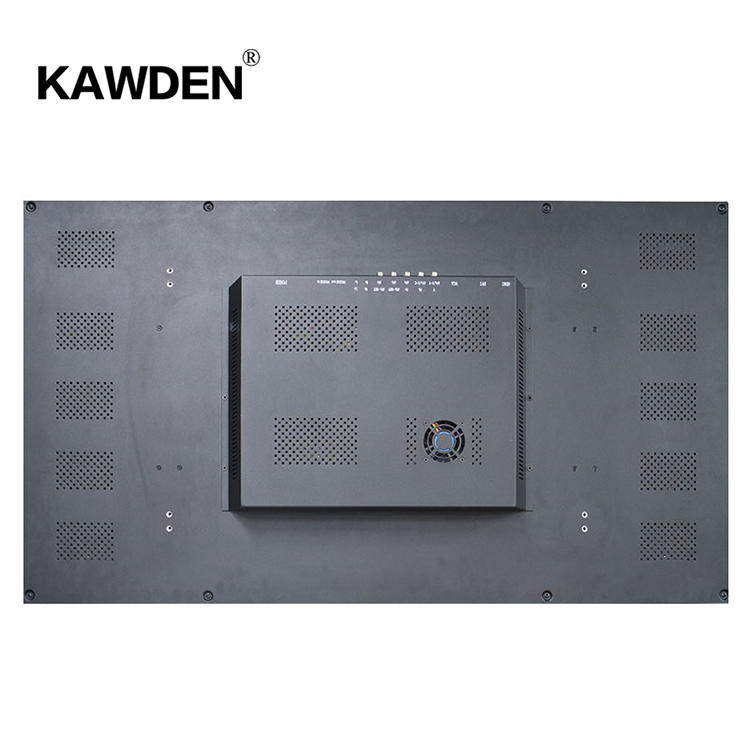

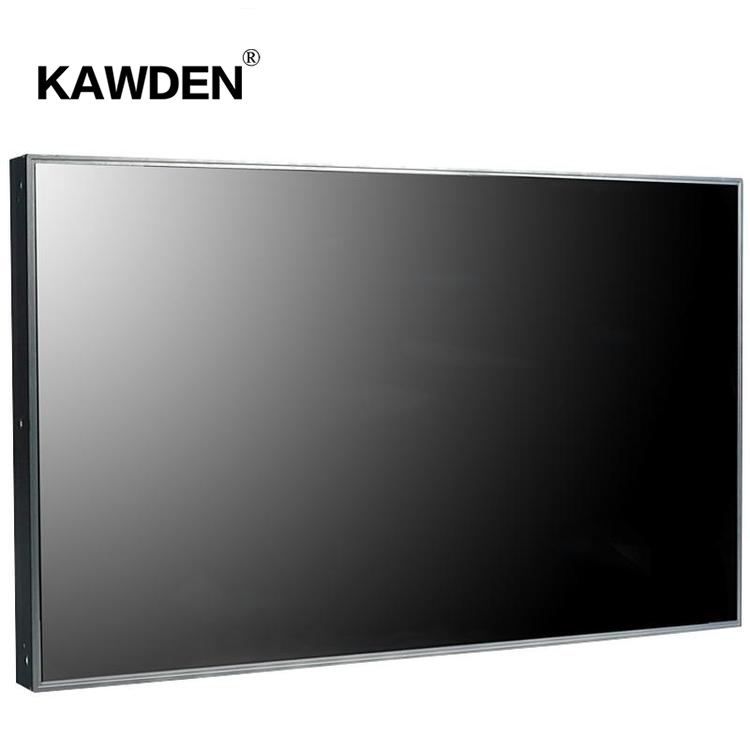

Kawden 46 inch 1.7mm LCD splicing screen seamless TV wall HD LED monitoring larg

Time:2022-11-24Popularity:359

BOE LCD splicing screen - KAWDEN official website
  • Kawden 46 inch 1.7mm LCD splicing screen seamless TV wall HD LED monitoring larg
Product description

1、 Features of 46 inch BOE LCD splicing screen


Kawden 46 inch BOE LCD splicing screen, splicing screen seam 1.7mm, ultra narrow edge seam, and the display built-in self splicing function, through simple settings, you can achieve multiple LCD screen splicing display. one thousand nine hundred and twenty × 1080 full HD display resolution can provide very clear and delicate display images for the monitoring/exhibition/conference center, and display HD signals without compression. With 178 degree wide viewing angle technology, you can see the superior display effect from any side. LED backlight is adopted, with wide color gamut, good color performance, low energy consumption, and safer low-voltage.



2、 46 inch BOE LCD splicing screen function


The LCD splicing screen is a complete LCD splicing display unit, which can not only be used as a display alone, but also be used as a multi screen splicing wall. According to different use needs, realize the function of variable large screen: single screen split display, single screen separate display, arbitrary combination display, full screen LCD splicing, vertical screen display, and image frame can be compensated or covered.



3、 Application of 46 inch BOE LCD splicing screen


Application sites: security monitoring, hotels, shopping malls, finance, transportation, water conservancy, government, electricity, medical, energy, education, meetings, television media, enterprises and institutions, etc.


The above is the introduction of Kadifu splicing screen manufacturer's 46 inch 1.7mm BOE LCD splicing screen seamless TV wall HD LED monitoring large screen. If you want to know the specific price, you can consult the business manager.
Technical Parameters
Specification and model
KD-S46017CL
LCD panel and size
55''
Butt joint
less than1.7mm
Display area(mm) 1024(H)×570(V)
display mode
16:9
Liquid crystal type
LED
Maximum resolution
1920*1080
Display color
16.7M
Point spacing(mm) 0.63(H)*0.63(V)
Brightness
500cd/㎡
contrast ratio
4000:1
Angle of view (up/down/left/right)
178°/178°/178°/178°
response time
6.5ms
Field frequency
60HZ
Composite video input
5-way BNC (BNC * 5) input
Composite video output
2-way BNC (BNC * 2) output, connected to video equipment, etc
Serial port control/RS232 input One RS232-RJ45 (568B) input
Serial port control/RS232 output One RS232-RJ45 (568B) output
VGA input 1-channel D-SUB VGA input
HDMI 1 channel HDMI input
DVI 1 channel DVI input
Color system
1 channel DVI input
Compatible HD TV input
480P,576P,720P,1080I,1080P
3D comb filtering
yes
noise reduction
yes
Menu language (optional)
中文/English
Power Supply
AC100V~240V,50/60Hz
Maximum power loss
≤250W
Standby power loss
<1W
Cooling system
Ultra quiet dual fan cooling, with temperature control function
Casing material
Strong metal casing
Body size (length × high × Thick)
1024(W)×578(H)×118(D)mm
Installation method
Wall mounted/cabinet/floor/front maintenance support
parts

Wall bracket, power cord, remote controller, 232 to RJ45 serial port connector, mounting

screw (M8 * 16), software manual, warranty card, certificate of conformity
